Spherical Roller Bearings
Spherical Roller Bearings: Types, Industrial Applications & Benefits
Spherical roller bearings are high-capacity roller bearings designed to handle heavy radial and axial loads while accommodating shaft misalignment or deflection. Built for durability in demanding conditions, they're a common choice across heavy industry wherever reliability under shock, vibration, or contamination is essential. This page explains what spherical roller bearings are, the products included in this category, where they're used, and the benefits they offer.
What Are Spherical Roller Bearings?
A spherical roller bearing consists of two rows of symmetrical, barrel-shaped rollers positioned between an outer ring with a common spherical raceway and an inner ring with two raceways inclined at an angle to the bearing axis. This geometry allows the bearing to accommodate heavy radial loads and axial loads in both directions, while the spherical outer raceway lets the bearing self-align to compensate for shaft misalignment or housing deflection. Because of this combination of strength and self-aligning capability, spherical roller bearings are widely regarded as one of the most robust bearing types for heavy-duty, harsh-environment applications.
Products Included in the Spherical Roller Bearing Category
Our spherical roller bearing range covers the following product types:
Spherical Roller Bearings (Radial)
The standard configuration, supporting high radial loads alongside oscillating axial loads, commonly used in conveyor systems, gearboxes, and heavy rotating machinery.

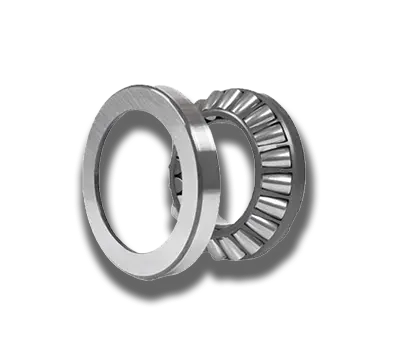

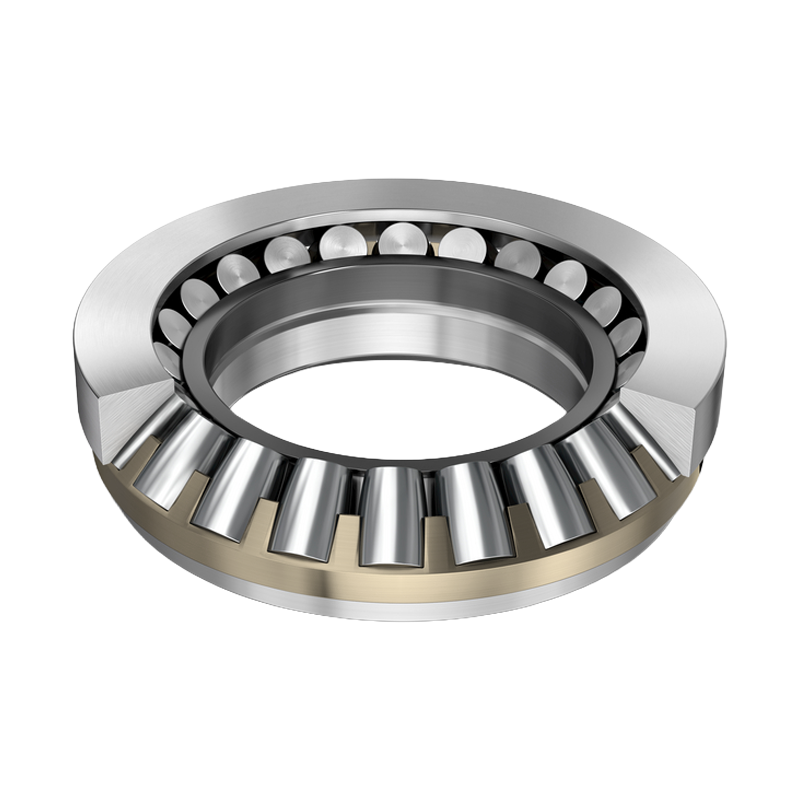

Axial Spherical Roller Bearings
Designed specifically to handle significant axial loads in demanding industrial environments, offering high durability where thrust loading is the dominant force.
Available with straight or tapered bore options, and in a range of internal clearances (including C3 and CN) to suit different operating temperatures and speeds, our spherical roller bearings are stocked in both cylindrical and tapered bore designs to fit directly onto a shaft or via an adapter sleeve.
Industrial Uses for Spherical Roller Bearings
The combination of high load capacity and misalignment tolerance makes spherical roller bearings a natural fit for heavy-duty applications, including:

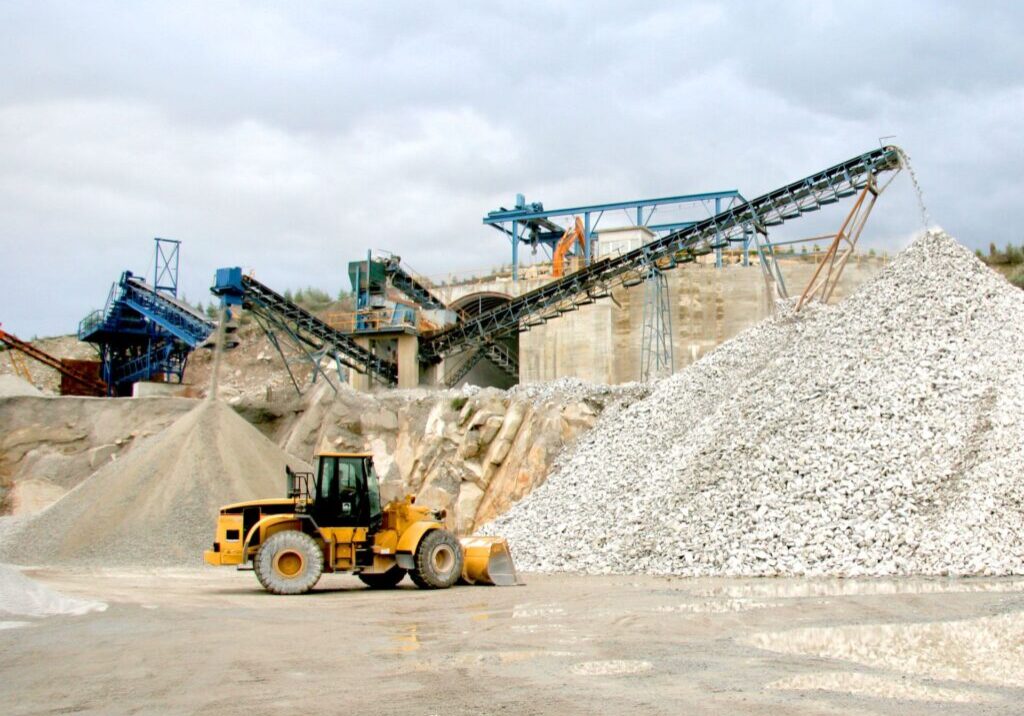

- Mining and quarrying – crushers, screens, and conveyor systems operating under continuous heavy load
- Construction equipment – excavators, loaders, and other machinery subject to shock loading
- Paper and pulp processing – heavy rollers and drive shafts in demanding processing environments
- Marine applications – propulsion shafts and deck machinery exposed to vibration and load fluctuation
- Power generation – wind turbine main shafts and gearboxes
- Steel and metal processing – rolling mills and heavy processing machinery
- Vibrating equipment – screens, feeders, and compactors subject to continuous vibration
- Agricultural machinery – gearboxes and drivetrains on heavy farm equipment
- General heavy manufacturing – any application combining heavy load, potential misalignment, and demanding operating conditions
Radial vs. Axial Spherical Roller Bearings: Key Differences
Feature
Radial Spherical Roller Bearings
Axial Spherical Roller Bearings
Primary Load Direction
Radial loads, with oscillating axial load capacity
Predominantly axial (thrust) loads
Typical Construction
Two rows of barrel-shaped rollers, spherical outer raceway
Rollers arranged to support load along the bearing axis
Misalignment Tolerance
High, thanks to the spherical outer raceway
Accommodates misalignment while carrying heavy thrust loads
Common Applications
Conveyor systems, gearboxes, general heavy machinery
Applications with dominant axial thrust, such as rolling mills and heavy gearboxes
Best Suited To
Applications where radial load dominates
Applications where axial load dominates
Benefits of Spherical Roller Bearings
Choosing the Right Spherical Roller Bearing
Selecting the correct spherical roller bearing depends on factors such as load type and magnitude, expected degree of misalignment, rotational speed, operating temperature, and bore type. Our team can help you identify the right spherical roller bearing for your specific application, contact us to discuss your requirements.
